Neo-Beam Beam-Frame (Beam-FRAME) Overview

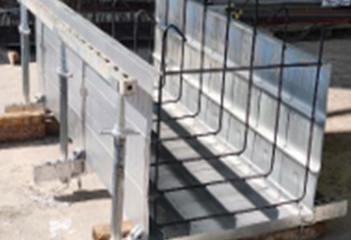

  • Neo-beam form

    Assembled at MAT and SLAB : Neo-beam form enables quick, simple, and robust work.

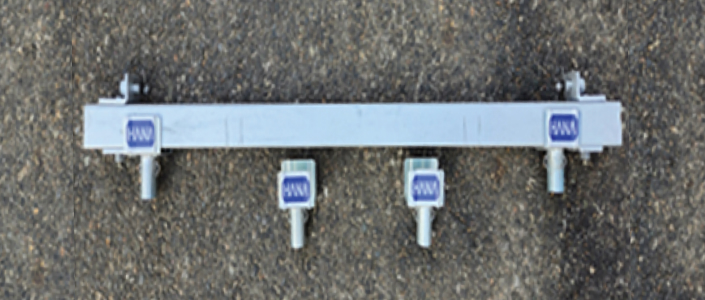

  • Neo-Beam Beam-Frame
    Installation Spacing and PIPE SUPPORT Support Spacing

    Installation spacing and
    support spacing are set based on
    structural review to
    match on-site construction conditions.

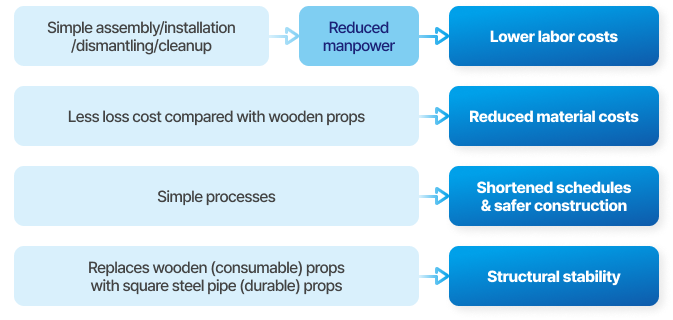

    Setting appropriate installation spacing and
    support spacing improves
    structural stability and
    reduces costs.

  • Original : from wood props

  • Conversion: beam-frame props

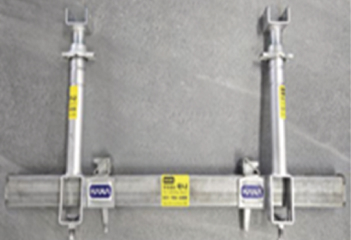

Beam-FRAME assembly

[Assembled at MAT and SLAB: fast, robust — fastening pin tapped with hammer makes fixed bracket (protrusion) attach tightly to Neo-beam.]

Neo-Beam Beam-Frame (PROP) Overview

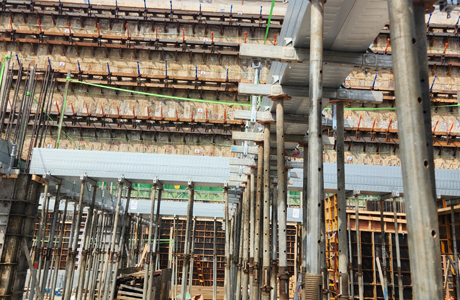

Existing Deck Plate Installation and Technical Issues

Schedule Delay During Deck Plate Installation and End Fixing

Planned Deck Plate installation and end fixing on the beam may be delayed due
to insufficient bearing length, extending work time and schedule.

Insufficient Deck Plate Bearing Length Due to Structural Construction Errors

Structural construction errors may cause insufficient bearing length in length
or width direction, risking support point failure due to deck plate deflection
during concrete casting.

Modified Deck Beam

  • Neo-Beam Beam-Frame

    Assembled at MAT and SLAB : Neo-beam form enables quick, simple, and robust work.

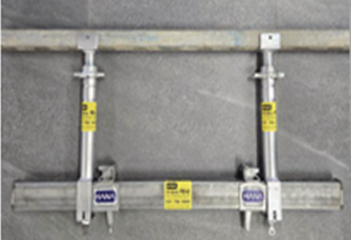

  • Installation of 'HANA Deck PROP' on 'Neo-Beam Beam-Frame

    Schedule Shortening by Utilizing
    Deck PROP During Deck Plate Installation
    and End Fixing

    By utilizing Deck PROP during planned Deck Plate installation and end fixing on the beam, the schedule is shortened, avoiding delays caused by insufficient bearing length.

    Securing Deck Plate Bearing Length at Both
    Ends Despite Structural Construction ErrorsDeck Plate

    Prevents the risk of support point failure at both ends due to deck plate deflection during concrete casting caused by insufficient bearing length in length or width direction from structural construction errors during planned deck plate installation.

    Ensures deck plate bearing length and strengthens end fixing

    No additional shoring or horizontal connection members required

Neo-Beam Beam-Frame' + 'HANA Deck PROP' Installation Sequence

  • STEP 01

    Connect
    Neo-Beam Beam-Frame
    to Neo-Beam

  • STEP 02

    Hoist Neo-Beam

  • STEP 03

    Install All
    Pipe Supports to
    Neo-Beam Beam-Frame

  • STEP 04

    Connect Deck PROP to
    Both Ends of
    Neo-Beam Beam-Frame

  • STEP 05

    Install rectangular
    steel members
    (main runner: □-50x50x2.0t SRT275)
    on top of Deck PROP

Neo-Beam Power-Frame (Power-FRAME) Overview

  • Original : Wooden cradle

  • Modified : Power-frame cradle

Neo-Beam Power-Frame construction range: 200 ≤ beam width ≤ 3500 mm

  • Neo-beam form

    Assembled at MAT and SLAB : Neo-beam form enables quick, simple, and robust work.

  • Neo-Beam Beam-Frame
    Installation Spacing and PIPE SUPPORT Support Spacing

    Installation spacing and
    support spacing are set based on
    structural review to
    match on-site construction conditions.

    Setting appropriate installation spacing and
    support spacing improves
    structural stability and
    reduces costs.
