NEO-BEAM Manufacturing Method
1.0 mm thick steel plates pass through a forming line to become cost-effective panels with structural cross-section performance produced by automated manufacturing.
NEO-BEAM Production Standards

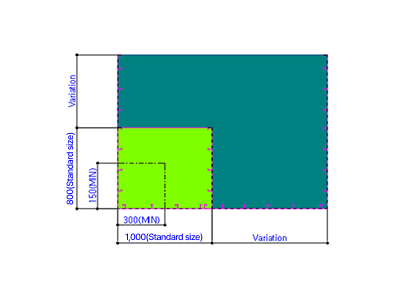

Width and height are produced in increments of 50 mm, allowing various beam cross-section sizes.
Design Tip
Standardize beam cross-section types per project to achieve economical results.
Using standard section ranges is economical
* members outside standard ranges require separate design and quotation.
Panel Detail Drawings (section listings)
Side plate details
-
Side plate details (0 ribs)
H-1 150, 200 -
Side plate details (1 ribs)
H-1 150, 200 -
Side plate details (2 ribs)
H-1 400, 450, 500, 550, 600 -
Side plate details (3 ribs)
H-1 650, 700, 750, 800
Lower plate details
-
Lower plate details (1 rib)
W-1 200 300 350 400 450 500 550 Beam width 300 400 450 500 550 600 650 -
Lower plate details (3 rib)
W-1 600 700 800 900 Beam width 700 800 950 1000
NEO-BEAM Manufacturing Sequence
-
01. Forming
-
02. Plate cutting
-
03. Plate assembly
-
04. Strut assembly
-
05. Finished product stacking
-
06. Transportation
NEO-BEAM Installation Sequence
- >
-
01. NEO-BEAM installation
-
02. Column + beam connection
-
03. Major beam + minor beam connection
-
04. Rebar placement
-
05. Deck Plate installation
-
06. Concrete casting
